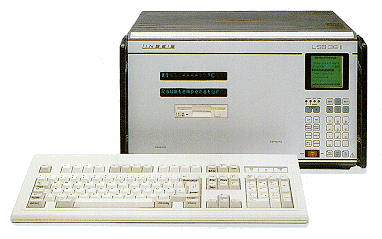

LSB36II
Datalogger Records Data on Floppy and on Remote Color Printer
- On-site A/D converter with computer interface
- Stand alone or PC online
- 36 channels
- 1.44 MB floppy for approximately 720,000 measurements
- Interface: RS-232/Centronic/ (IEEE, opt.)
- Recording with date/time
- more data see below
|
|
| |

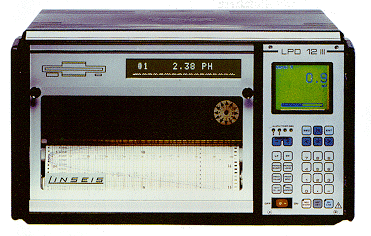

LPD12II
Digital 12 Color Point Printer with Built-in Inkjet Print Head
- Print out with date and time
- Records: analog traces, alphanumeric data, alarm print out, set up of instrument
- 1,44 MB floppy (opt.)
- Interface: RS-232/(IEEE,opt.)
|
|
| |
Common Data for LSB36II and LPD12II
- User interface in plain English
- Online/offline operation
- Sampling rate: 1 sec. all channels
- Temperature resolution: 0,1 degrees Celsius
- Every channel singly programmable in mV, V, mA, thermocouples and Pt100
- 16 line LCD large display for bargraph, trend recording, digital value and enlarged display
- Menu driven programming
- Programmable user scaling e.g. psi pH...
- Two line fluorescent display
- PC keyboard connector for input of data
- Applications as datalogger and computer front-end
- Programmable alarms for print out, chart speeds, contact closure and disk recording
- AC and DC operation (opt.)
|
| |
LFU6
6 Channel Process Recorder with 6 Color Ink-Jet
144" 144mm
|
|
