L250
(Deluxe Flat-bed recorder built according to CE and FCC regulations)
- Chart width 250 mm
- 1 and 2 channel version
- mV, V and mA inputs
- Separate electric penlift per channel
- Chart drive with grid function
- 16 chart speeds from 0,1 mm/min to 20 mm/sec
- Remote control for chart drive
- Single chip hybrid technology
- Longlife fibre tip pens
- Monitor output signal
- Paper advance/rewind knob
- Counter voltage (opt.)
- 4TC types and Pt100. (opt.)
|
| |
|

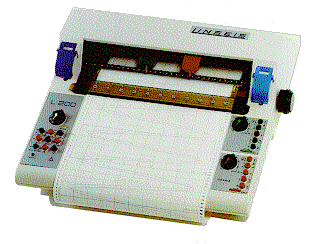

L200
Deluxe Flat-bed recorder built according to CE and FCC regulations
- Chart width 200 mm
- 1 and 2 channel version
- mV, V and mA inputs
- Separate electric penlift per channel
- Chart drive with grid function
- 16 chart speeds from 0,1 mm/min to 20 mm/sec
- Remote control for chart drive
- Single chip hybrid technology
- Longlife fibre tip pens
- Monitor output signal
- Paper advance/rewind knob
- Counter voltage (opt.)
- 4TC types and Pt100 (opt.)
|
| |
|
L120
Deluxe Flat-bed recorder built according to CE and FCC regulations
- Chart width 120mm
- 1 and 2 channel version
- mV, V and mA inputs
- Separate electric penlift per channel
- Chart drive with grid function
- 16 chart speeds from 0,1 mm/min to 20 mm/sec
- Remote control for chart drive
- Single chip hybrid technology
- Longlife fibre tip pens
- Monitor output signal
- Paper advance/rewind knob
- Counter voltage (opt.)
- 4TC types and Pt100 (opt.)
|
