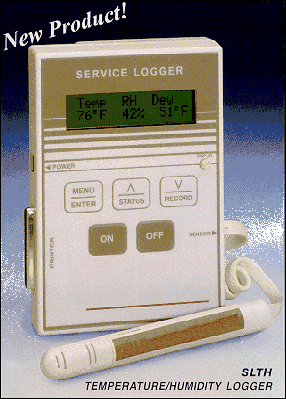

SLTH Service Logger

Instantly with One Hand Held, Multifunction Instrument!

• Records Data Up to 40 Days
• Prints Data Without a Computer
• View Data "On the Spot"
• Accessory Sensors Customize Instrument to Fit Every Application
• Alphanumeric Backlit Display

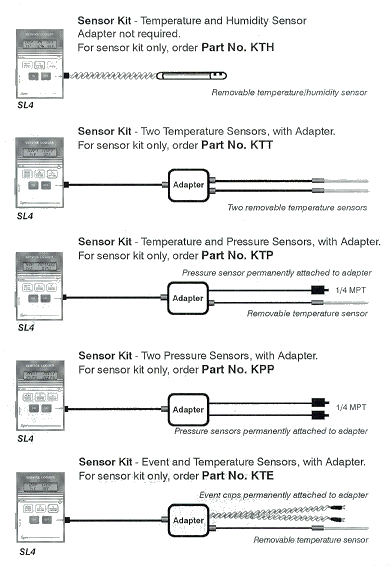

Choose from a variety of interchangeable plug-in sensors

• Temperature /Humidity Sensor
• Dual Temperature Sensor
• Temperature/Pressure
• Dual Pressure
• Temperature/Event

Recording Time: 5 hours to 40 days
Primary Power Source: 115 VAC, 50/60Hz.
Adapter: 220-240 VAC, 50/60 Hz. Available
Back-up Power Source: 9V alkaline battery for 24 Hours of operation (not included)
Alternate Power Source: External power may be Supplied from any 12 VDC source such as automotive, marine or other battery.
Ambient Operating: +32ºF to +150ºF
Temperature Range: 0ºC to +65ºC
Memory: 16K non-volatile memory
Display: Alphanumeric backlit LCD, 6 characters X 2 lines
Printer Interface: Parallel centronics compatible printer port
Dimensions: 5 1/8"" X 3 1/2" X 1 1/2"
Weight: 10 oz. (284 grams)
Software: 3 1/2" diskette (supplied)
All Cables: 6 feet long

Temperature/Humidity Sensor
Type: 4 " Plastic housing for air only, with coiled cable
Temp Range: -40ºF to+170ºF and (-40ºC to + 175ºC)
Temp Accuracy: +/- 2ºF (+/- 1ºC)
Humidity Range: 0 to 100% at +32ºF to + 130ºF and (0ºC to 55ºC) ambient
Humidity Accuracy: +/- 2%
Dew Point Range: +32ºF to + 130ºF (0ºC to + 55ºC)

Temperature Sensor
Type: 4" Stainless steel submersible
Temp Range: -40ºF to 170ºF (-40ºC to +75ºC)
Temp Accuracy: +/- 2ºF (+/- 1ºC)
