XY-Recorders

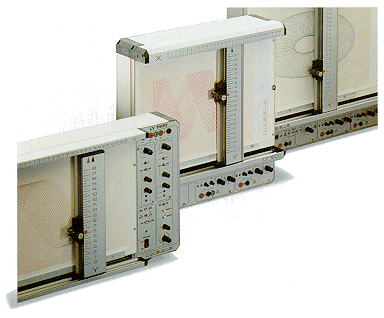

LY 14100II
LY 1500
LY 16100II

• Paper size: LY14100II DIN A3, LY16100II DIN A4
• Universal standard XY-recorders
• Time base 9 steps 0,1 s/cm to 50 s/cm
• High writing speed
• Electric pen lift
• Stable construction, Aluminum Space Frame (ASF)
• Powerful, solid equipment
• Electrostatic paper hold-down

LY 1500

• Compact with HP-equivalent dimensions
• US-format 7 x 10 inch

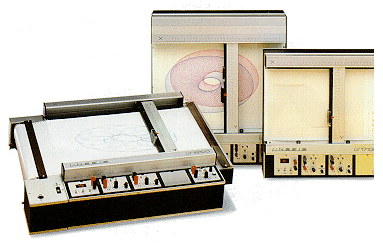

LY 17300 A4
LY 18300 A3
LY 181000 XYY

• Modular design enabling the use of user-specified input modules
• Variable range expansion
• Time base
• Automatic paper wind-up mechanism (opt.)

Measuring Input Modules

• 1 single range module 0.05 - 20 mV/cm or 0.05 - 20 V/cm
• Multi-range input modules 0.05 - 20 mv/cm and 0.05 - 20 V/cm
• With/without symmetric input
• With/without low-pass filter
• 1 thermocouple module
• 1Pt100 module unlinearized
• 1 time base generator, (9 steps 0.1 - 50 sec/cm)
• Available in inch calibration
