Balance Measuring Systems

Horizontal measuring system for TG

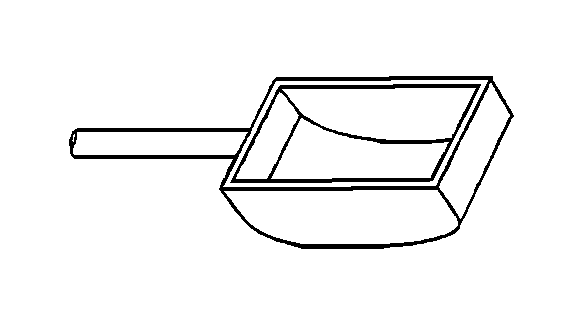

L81/4011 measuring system with quartz spoon 1000°C used for solids, powders and liquids with large surface area, without thermocouple volume: 3,5 ccm. fitting TE L81/22

Horizontal measuring system for simultaneous TGA/DTA

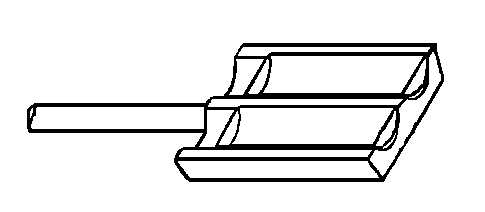

L81/411
quartz TGA/DTA measuring system, temp. range 1000°C Type S thermocouples. The tubular shape of the measuring system insures a large surface area for reactions. This measuring system is best suited to measure powders and liquids. Solid granulates that show bad heat transfer should be mixed with AI₂O₃ powder. Volume 2 x 0,6 ccm.

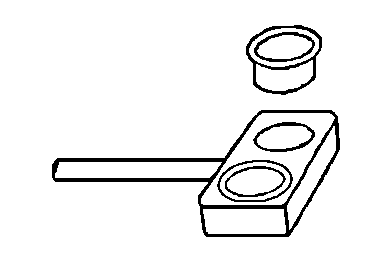

L81/412
quartz TGA/DTA measuring system temp. range 1000°C with ring shaped type S thermocouples which support platinum crucibles. Volume: 2 x 0,08 ccm.

Vertical measuring system for TGA

L81/421
vertical AI₂O₃ measuring system 1550°C with built in thermocouple type S

Vertical measuring system for TGA

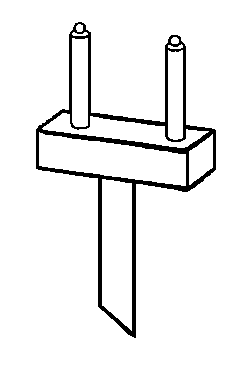

L81/432
vertical AI₂O₃ measuring system 1550°C with built in differential thermocouples type S

L81/442
vertical AI₂O₃ measuring system 1750°C with built in differential thermocouples EL18, long version

L81/452
vertical Tungsten measuring system 2400°C with built in differential thermocouples type C for crucible L81/5011

vertical measuring system for TG/HDSC

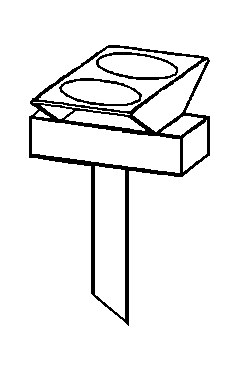

L81/472
vertical AI₂O₃ measuring system /PtRh(0) with built in differential thermocouples type S

Size	Material	Order #
3,0 ml	AI₂O₃	L81/439
0,3 ml	AI₂O₃ Pt	L81/438 L81/434
0,085 ml	AI₂O₃	L81/4496
0,12 ml	Pt	L81/4494
0,075 ml	Pt AI₂O₃	Pt044 20007013
0,08 ml	Pt AI	L81/4021 L81/4022
0,08 ml	W	L81/5011


L81/421	L81/432 L81/442	L81/472

		L81/412

	L81/411

	L81/4011
