All Linseis Thermal Analysis instruments are controlled through Advanced MS?Windows?software. The complete program consists of 3 sections: temperature control, data acquisition and data evaluation. Essential sample information is entered in the data acquisition section.

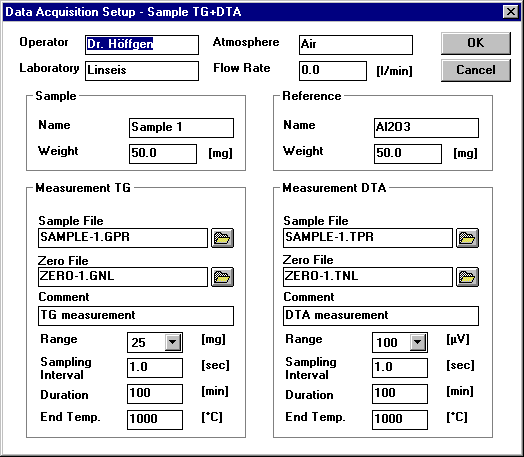

Essential data for each sample test includes: operator, laboratory, atmosphere, gas flow, material, sample file name, zero file name, commands, sample weight, measuring range, max. temperature, duration of run, sampling frequency, heating and cooling rate and number of cycles.
All menus are easily handled and intuitive. The software is quickly mastered with a minimum of training.

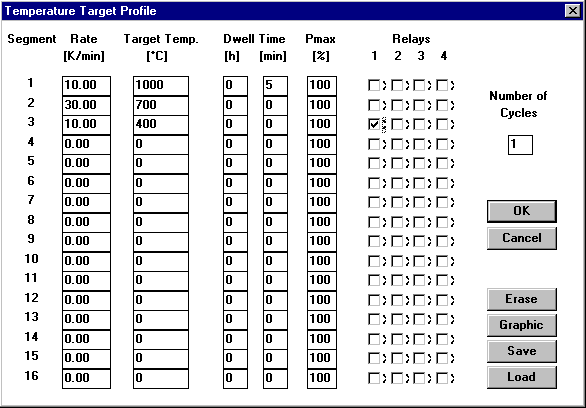

With this menu, the heating rate, the target temperature and a dwell time can be programmed. The program is able to run 16 temperature stages in up to 99 cycles. Also 4 relais outputs can be programmed that can be used for gas control or other purposes.

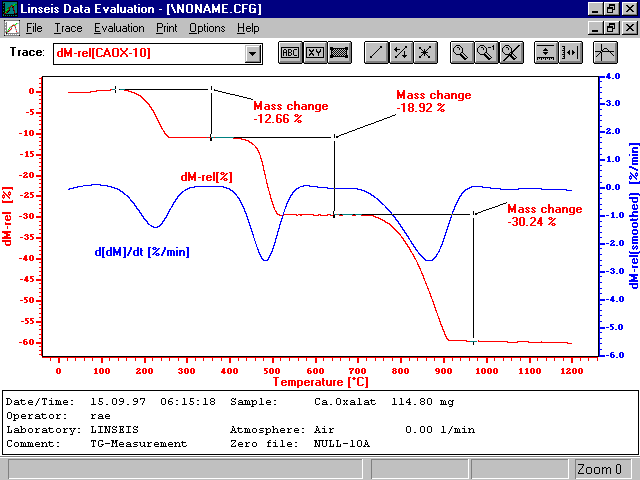

The evaluation is part of the complete windows software. It features a number of functions enabling a full evaluation of all types of data. All evaluation and data collection can be performed simultaneously. Data can be corrected using zero and calibration correction. Data evaluation includes: signal corrections and smoothing, derivation, relative mass change, mass calculation, curve arithmetic, data peak evaluation, glass point evaluation, slope correction. A mean curve with statistical analysis can be performed on multiple curves. Graphical displays can be printed on all windows, compatible printers or plotters. Data can be displayed and printed in a table format. The software also includes an ASCII export feature.
