Thermal Analysis Overview

Equipment for quality control and fundamental research. Measures the variation of the sample weight versus temperature changes. L81 (STA) Research Thermobalance Temperature range from (-100'C) 20C - 1000/1300/1550/1750/2400C Simultaneous TG-DTG-DTA-T measurements Vertical and horizontal operation High sensitivity without post-amplification Versatile, modular construction Measurements In static and dynamic atmosphere Measurements under vacuum Measurements with corrosive gases Complete control and evaluation Windows software package	Thermal Balance L81 Introduction
Measures the variation of the sample length versus temperature. Dilatometer L75 / L76 Dilatometer for absolute and differential measurements Vertical and horizontal operation Single or dual samples High sensitivity Measurements under vacuum Temperature range from (- 100C) 20C - 1000/1300/1550/1750/2300C Rate controlled sintering Measurement under pressure of max. 100 bar Complete control and evaluation Windows software package	Dilatometer L75 Introduction

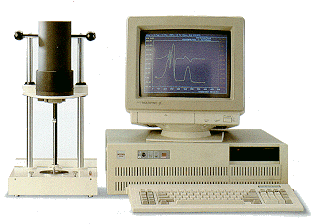

Measures endothermal or exothermal reactions of a sample versus temperature DTA L62 Differential Thermal Analysis Temperature range from 20C up to 1550C High sensitivity due to small measuring systems with very low heat capacity of sintered aluminum (AI203) or PT-crucibles Please ask for special literature!
L 63 DDK (DSC) Differential Micro Calorimeter Temperature range -150C - 700C 20C - 700C Extremely high sensitivity High resolution Comfortable to calibrate Stable baseline User friendly
TG L 82 Thermobalance Differential Micro Calorimeter Temperature range -110C - 600C 20C - 1000C Extremely high sensitivity High resolution TG/DTA/DSC under development
TMA L77 Thermomechanical Analysis Temperature range -80C - 500C 20C - 1000C Measures: (Dependant on Temperature under Alternating Load) Expansion Penetration Elasticity

Windows Software for Thermoanalysis

We offer a computer-based measurement and evaluation software package for our thermoanalytical equipment. The system is controlled with a PC compatible computer. Optionally a color plotter can be connected to draw the measured curves. We recommend the use of a color Ink-jet printer. The software is easy to handle. The user is guided step by step through the menu driven program. Help information is available for all functions.

The incoming data is displayed on the screen in Realtime. All functions are activated via function-keys or mouse click.

• EGA / VGA video mode
• Multitasking
• Mouse control
• Free comments
• Complete documentation with color printout and evaluation list
• Data export to other programs
• Temperature control including heating up, cooling down and isothermic experiments
• Computer controlled automatic calibration
• Automatic baseline correction
• Realtime display of the ongoing process
• Evaluation includes peak temperature, peak area, enthalpy, glass transition point and onset temperature
• Curve smoothing
• Zoom function for any curve section multiple curves can be displayed simultaneously to be compared
• Arithmetic functions to add, subtract and differentiate curves, also multiplication and division
• Standardizing of sample weight
